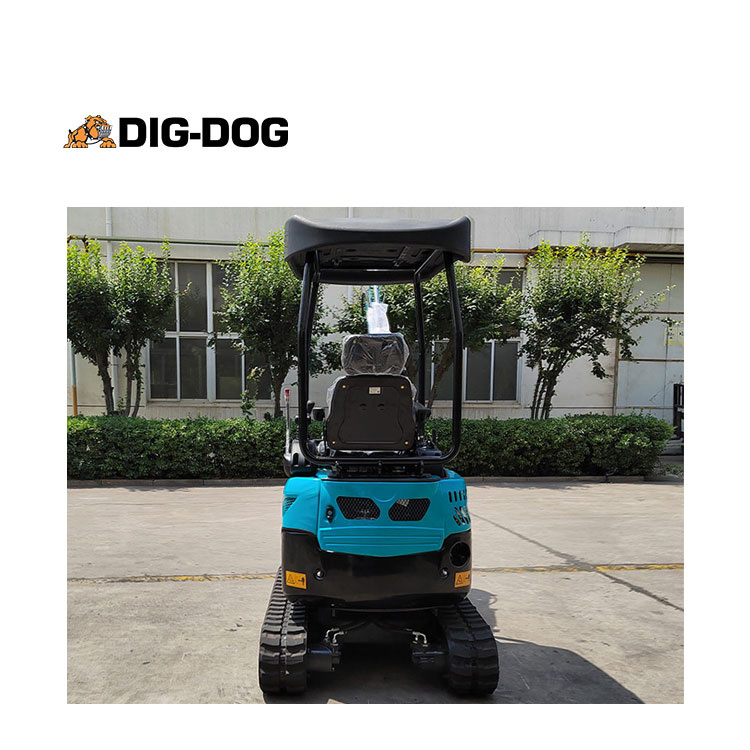

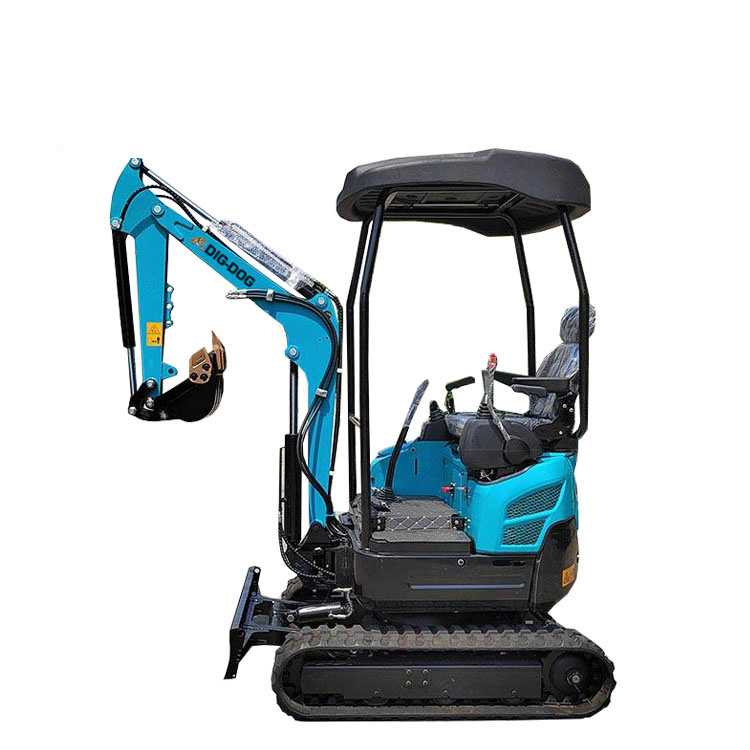

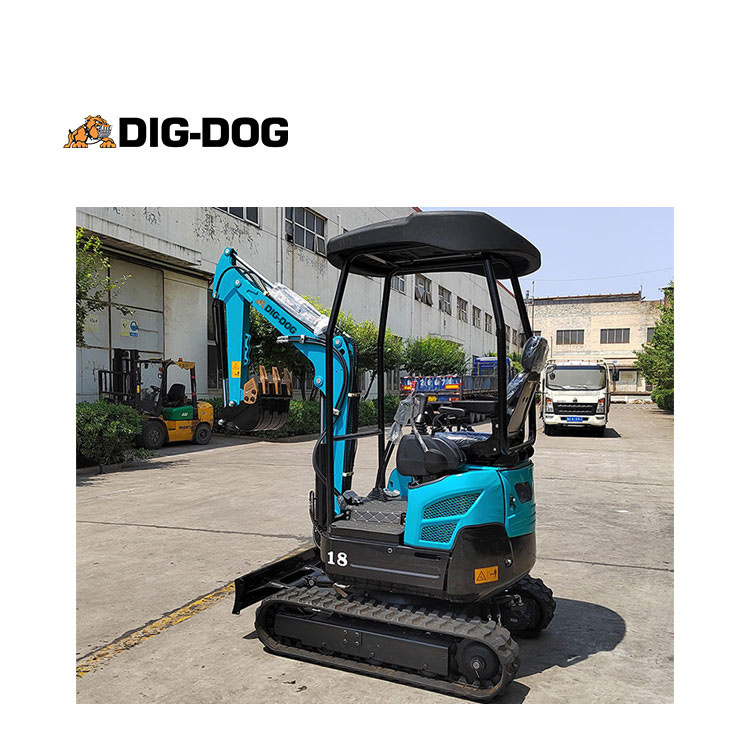

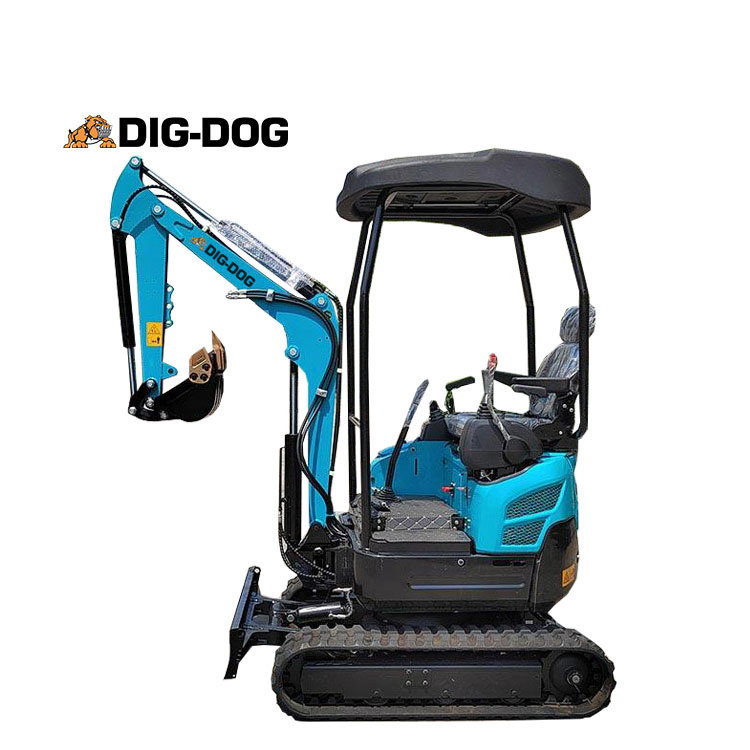

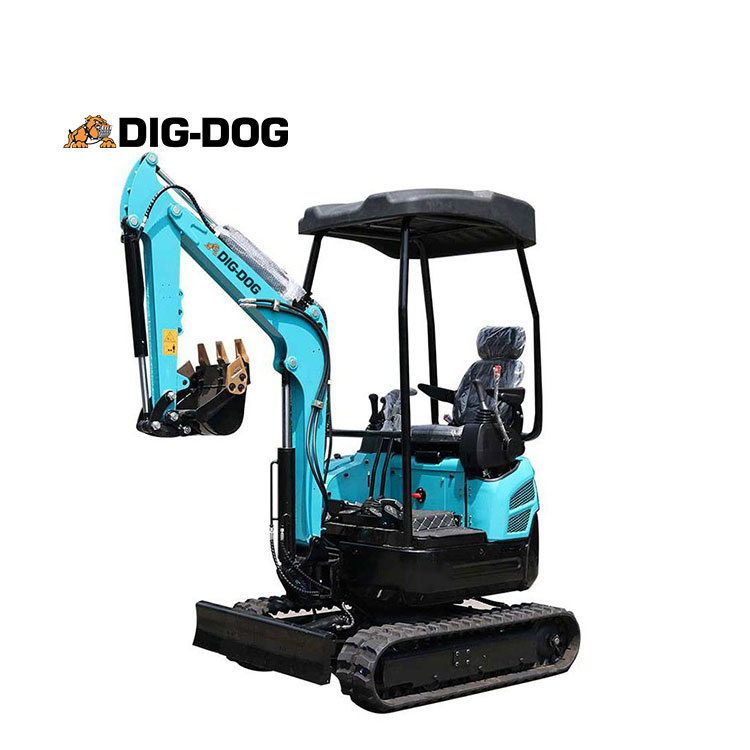

DIG-DOG DG17 Micro Digger 1.7 Ton
DG17 Overview
This 1.7 ton hydraulic micro digger adopts dual-pump load-sensing hydraulic system, Eaton travel motor, double-slewing motor, double-row group slewing support, optional plunger pump, cab, high and low speed, boom side swing, chassis telescopic.
Engine: Changchai/Koop
Power: 10.3kw/15hp
Weight: 1500kg
Maximum excavator depth: 1850mm
Chassis width: 1160mm
Machine size (length*width*height): 2200*1100*2200 mm
DG17 Features & Benefits
1. Hydraulic system
Industry-leading hydraulic system: precise flow control according to load changes, excellent micro-operation performance, just like human hands. Full hydraulic control: all actions are controlled by the pilot hydraulic pressure, no idle travel, good micro control, safe and precise, more stable action, lower fuel consumption.
2. Boom lever
Boom, arm, bucket, and push shovel are all made of manganese steel plates welded by robots at one time, with stronger bearing capacity. A cut-off valve is added to the auxiliary pipeline, and the replacement of accessories does not leak oil. The extended rocker is standard, and the working range is larger.
3. Slewing ring
The enlarged and reinforced slewing ring is durable and more reliable. Chassis We use a tank-type off-road chassis, thickened steel plate, widened size, more stable, durable.
4. Strengthen the framework
Reinforced working devices and frames, based on the ANSYS platform, optimize the structure, reduce stress concentration, and extend the average life by 30%.Cab TOPS/ROPS analysis, safe and reliable.
5. Comfortable space
The seat cushion is large, the backrest is raised, and the ride comfort is better, which can meet the driving needs of drivers of different sizes. The manual operating lever is beautiful and elegant, the foot space is spacious and comfortable, and the operation is convenient. Add 12V power supply to facilitate your life.
6. Maintain
Daily maintenance positions are concentrated at the rear of the machine. After opening the machine cover, you can access the air filter, oil filter, fuel filter, oil gauge, hydraulic oil return filter element, oil filling port, easy maintenance and good accessibility.Removable dust filter for easier cleaning.
Attachments
Standard configuration: broken pipeline, can be equipped with a variety of crushing hammer, soil, wood, spiral drill and other different accessories, A tractor serves several purposes.Iron track and rubber track can be interchangeable at any time, adapt to various construction conditions, can bias the rotating arm, can deflection work easily undermine the foundation.
Optional configuration: quick change (mechanical | hydraulic) / grip / screw / crushing hammer / booster / Rake / fork / thumb (mechanical | hydraulic) / narrow bucket / clean bucket / tipping bucket.
