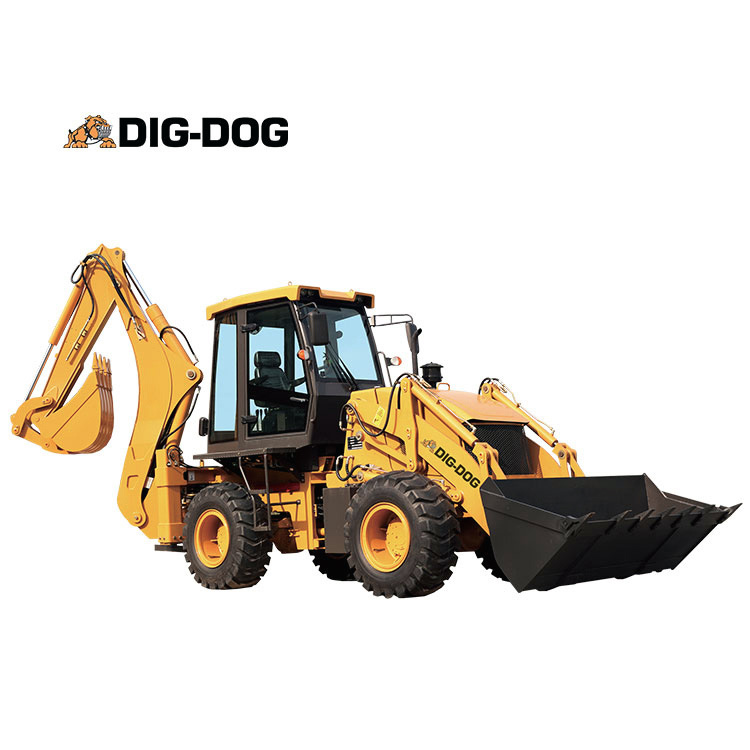

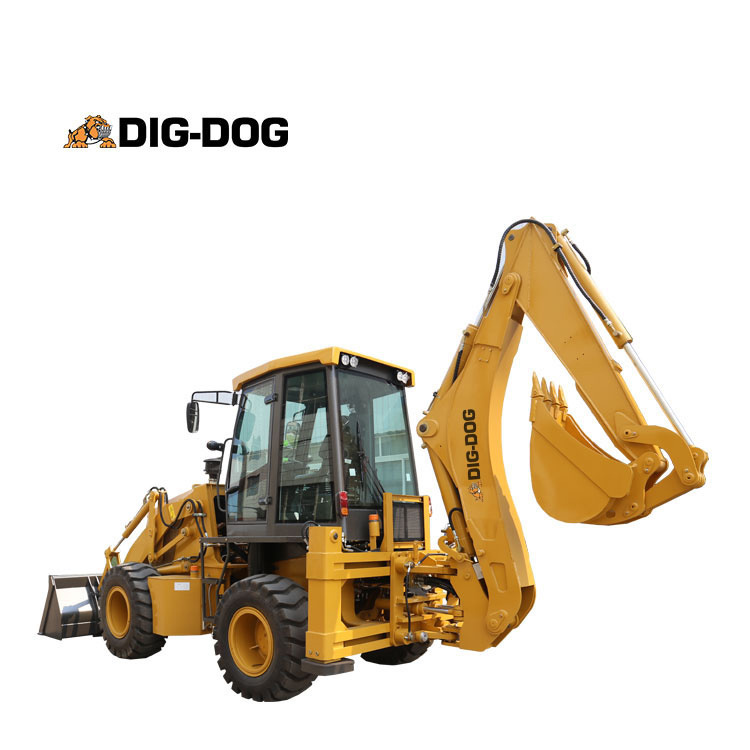

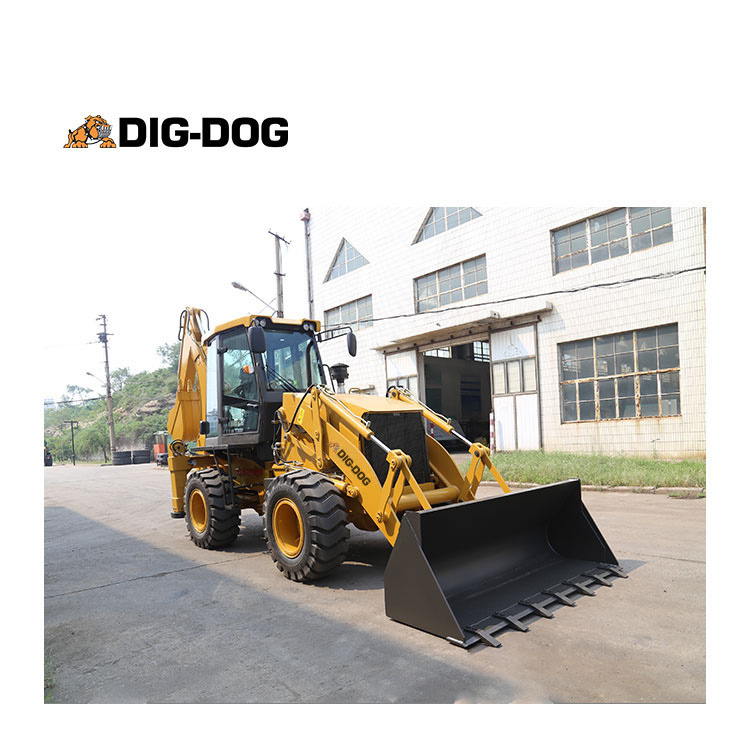

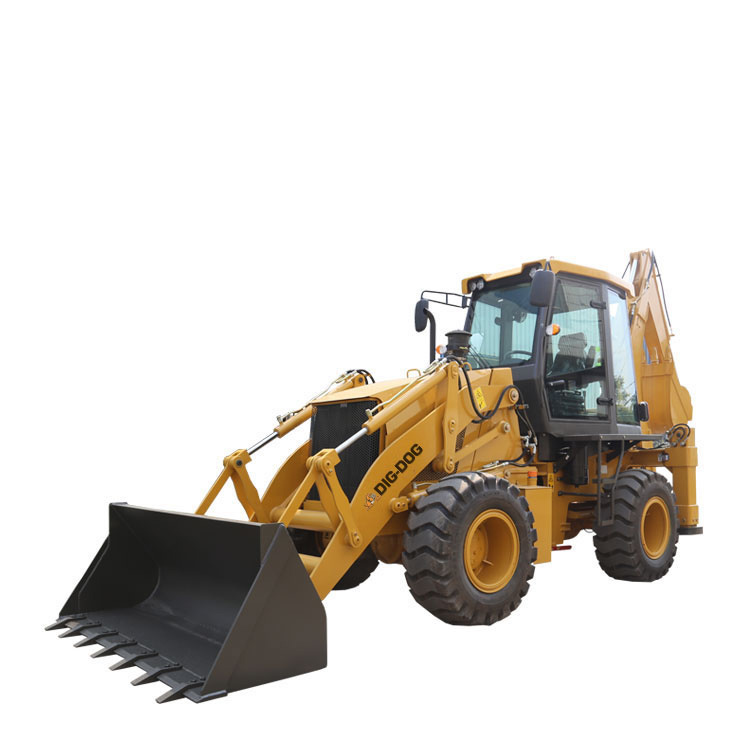

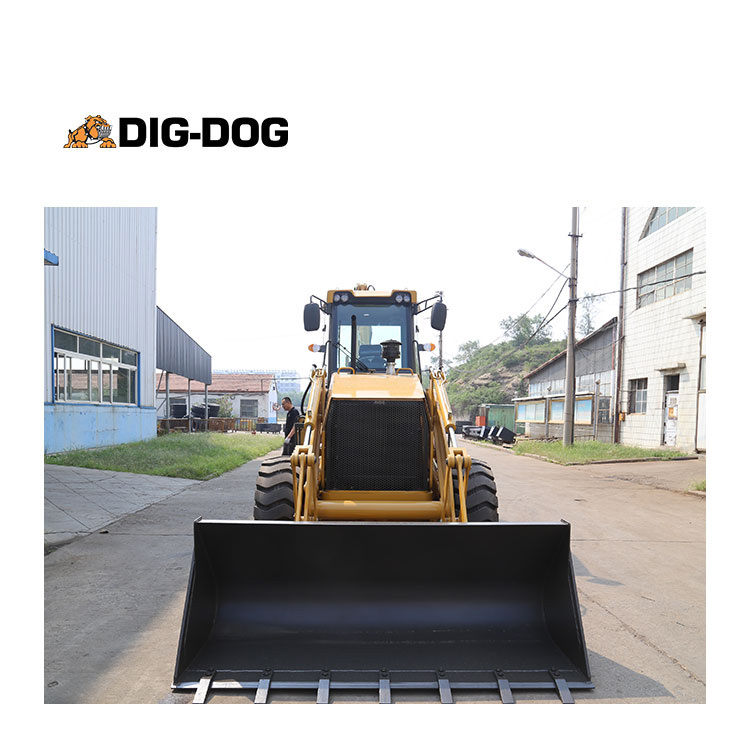

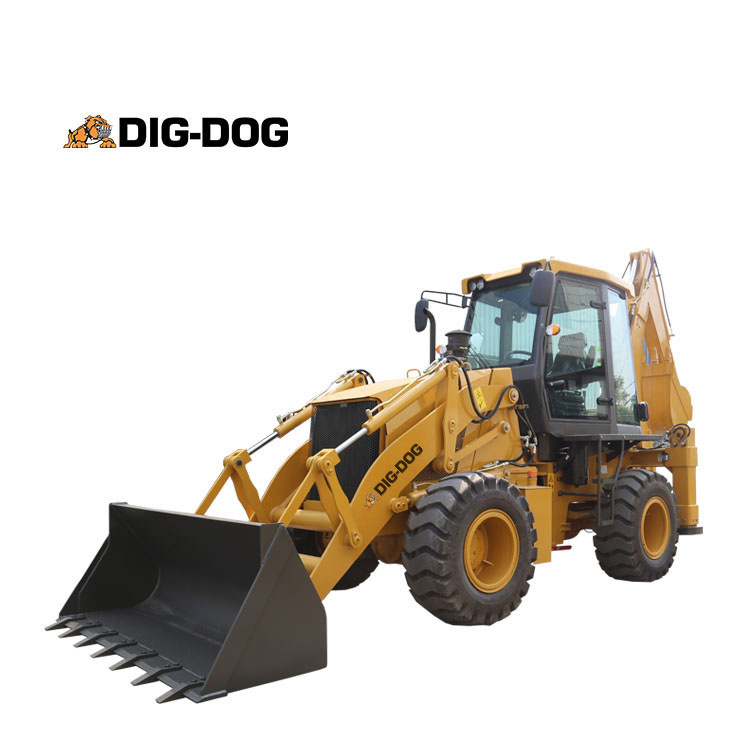

DIG-DOG BL750 Backhoe Loader 7640 Kg

Item No.: BL750
DIG-DOG BL750 mini tractor backhoe loaders are versatile machines that combine excellent trenching, excavating, loading, lifting and material handling capabilities with the benefits of a single machine that is easy to maintain and simple to operate.
Description Product parameters Attachments FAQ Review
Description
DIG-DOG BL750 Mini Tractor Backhoe Loader 7640 Kg
BL750 Overview
The DIG-DOG BL750 mini backhoe loader can be equipped with "H" or span-type outriggers. The operating weight of the whole machine is 7640 kg, the rated bucket capacity is 1.0 m³, the rated bridge load is 7.5 ton, and the loading and lifting capacity is 2500 kg.

During construction, operators can quickly switch from excavator to loader by simply turning the seat once in the cab. The DIG-DOG BL750 backhoe loader not only has the main functions of digging and loading, but can also realize the conversion of multiple functions by installing a quick-change device. By replacing different accessories, various tasks such as mining, loading, crushing, drilling, snow removal, cleaning and municipal emergency response can be easily realized, providing comprehensive solutions for customers in rescue, urban pipelines, landscaping, roads and other industries.

DIG-DOG BL750 Mini Tractor Backhoe LoaderBL750 Features & Benefits
1. The BL750 backhoe loader adopts a central articulated frame, which has a smaller turning radius, flexible maneuverability, and good lateral stability, making it easy to load in narrow sites;

2. It should be noted that DIG-DOG BL750 has an overall frame structure with a tractor as the body, making the body more stable during excavation operations. This differs from low-cost but structurally unstable machines that have an excavation device mounted on the other end of a separate wheel loader;

3. It adopts air-cap oil caliper disc foot braking system and external toe-type drum hand brake, making the braking safe and reliable;

4. The hydraulic transmission structure is adopted to improve the reliability of the transmission system;

5. The BL750 mini backhoe loader adopts full hydraulic steering, power shift speed, and hydraulic control of the working device. The operation of the whole machine is light and flexible, and the movement is smooth and reliable;

6. The machine adopts low-pressure wide-base off-road tires and the rear axle swings, which has good off-road performance and passing performance;

7. The excavation working device capable of lateral sliding makes the excavation range wider and has a wider application range;

8. It adopts a suspended shock-absorbing 360-degree rotating seat with armrests and safety belts;

9. The refueling position of the oil/diesel tank is convenient and the oil level is easy to observe.

BL750 Details Images
DIG-DOG BL750 Mini Tractor Backhoe Loader
Packaging & ShippingDIG-DOG BL750 Mini Tractor Backhoe Loader
Company Profile
DIG-DOG BL750 Mini Tractor Backhoe Loader
DIG-DOG, dig love & build dream!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG has our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.

DIG-DOG BL750 Mini Tractor Backhoe Loader
Product parameters
The Main Performance Parameter of BL750 Backhoe Loader
Overall Operating Weight
7640KG
Final Reducer
Single Stage Final Reducer
Transport Dimension
Rated Loader of Axle
8.5t
L*W*H
6170×2268×3760
Transmission System
 Wheel base
2370mm
Torque Converter
 Min. Ground Clearance
300mm
Model
YJ280
 Bucket Capacity
1.0m3
Type
Single-stage Three Elements
Breakout Force
58KN
Max. Efficiency
84.40%
Loading Lifting Capacity
2500KG
Inlet Pressure
1.3Mpa—1.5 Mpa
Bucket Dumping Height
2770mm
Outlet Pressure
0.25Mpa—0.3 Mpa
Bucket Dumping Distance
925mm
Cooling Method
Oil-cooling Pressure Circulation
 Digging Depth
27mm
Gearbox
Backhoe Capacity
0.3m3
Type
Fixed Shaft Power Transmission
Max. Digging Depth
4082mm
Oil Pressure of Clutch
1373Kpa—1569 Kpa
Swing Angle of Excavator Grab
190o
Gears
Two Gears Ahead, Two Gears Astern
Max. Pulling Force
65KN
Max.Speed
22Km/h
Engine
Tyre
Model
YUCHAI  YC4A105Z-T20
Model
16/70-20
Type
In Line Direct injection Four-Stroke and Injection Combustion Chamber
Pressure of Front wheel
0.22 Mpa
Cylinder-Inside Diameter*Stroke
4-108×132
Pressure of Back Wheel
0.22 Mpa
Rated Power
75KW
Brake System
Rated Speed
2200r/min
Service Brake
Air Over Oil Caliper Brake
Min. Fuel Consumption
≤230g/km.h
External Type
Max.Torque
≥400N.M/1500r/min
Self-regulation
Displacement
4.8L
Self-balance
Steering System
Emergency Brake
Operation Power Implementing brake
Model of Steering Device
BZZ5-250
Manual Operation Power Terminating Brake
Steering Angle
±36 o
Hydraulic System
Min. turning radius
5018mm
Digging Power of Excavator Grab
60KN
Pressure of the system
14Mpa
Digging Power of Dipper
31KN
Axle
Bucket Lifting Time
5.4S
Manufacturer
Feicheng Axle Factory
Bucket Lowering Time
3.1S
Main Transmission Type
Double Reduction
Bucket Discharge Time
2.0S

Related Models

DIG-DOG BL350 Mini wheel Front End Loaders Compact Backhoe Loader> DIG-DOG BL750 Mini wheel Front End Loaders Compact Backhoe Loader DIG-DOG BL820 Mini wheel Front End Loaders Compact Backhoe Loader
BL350 BL750 BL820
BL820W BL820T BL920
Attachments
DIG-DOG also offers the following attachments for the backhoe loaders, in a variety of sizes and specifications to fit your machine:

DIG-DOG BL750 Mini Tractor Backhoe Loader
DIG-DOG BL750 Mini Tractor Backhoe Loader
DIG-DOG BL750 Mini Tractor Backhoe Loader
DIG-DOG BL750 Mini Tractor Backhoe Loader
FAQ
1. Are You Original Manufacture?
Yes, DIG-DOG is a Manufacturer In Construction Machinery In China And We Have The Wholeseries Earth Moving Machines You Need.
2.Which Incoterms Terms Can We Work?
Normally We Work On FOB, CFR, CIF.
3.Which Payment Terms Do You Accept?
Normally We Can Work On T/T Term Or L/C Term.
4.What About The Warranty Time?
12 Months After Shipment Or 2000 Working Hours.
5.What About The Delivery Time?
7-30 Days After Receiving The Deposit.
6.What About The Minimum Order Quantity Of BL750 Backhoe Loader?
The MOQ Is 1 Pcs.
7.What To Look For When Buying A Tractor Backhoe Loader ?
The purpose of the machine
Type of material being moved
-Assess The load.
-Look At The Controls.
-Assess Other Functional Features.
-Think About The Attachments For Your Backhoe Loader.
8. Price difference?
The product prices on the website fluctuate due to factors such as raw material costs. Please refer to the quotation from the business person in charge.
