Stationary Scissor Lift

Dig-Dog SLF-20 Fixed Electric Lifting Platform With Four Scissors Forks

Item No.: SLF-20
Bonovo Dig-Dog Four Scissors Stationary Scissor Lift with High strength alloy steel, worktable can be equipped with rollers. Convenient to lift board, reduce manual labor intensity.
Description Product Parameters Product photos FAQ
Description
SLF-20 Fixed Electric Lifting Platform With Four Scissors Forks
Bonovo Dig-Dog Four Scissors Stationary Scissor Lift with High strength alloy steel, worktable can be equipped with rollers. Convenient to lift board, reduce manual labor intensity.
Specially designed for lifting and conveying materials for factories and users, it adopts hydraulic lifting and equipped with manual pushing drum conveying line. You can design and customize more suitable products according to your needs.

Bonovo Dig-Dog Stationary Scissor Lift with High strength alloy steel, worktable can be equipped with rollers. Convenient to lift board, reduce manual labor intensity.

Specially designed for lifting and conveying materials for factories and users, it adopts hydraulic lifting and equipped with manual pushing drum conveying line. You can design and customize more suitable products according to your needs.

Dig-Dog SL Series Scissors Lifting platform is a high quality electronic hydraulic scissors lifting platform with a bearing capacity from 400kg to 2000kg and a lifting height of   5m. We also accept custom platform sizes and elevations. It can be mounted on the ground.



Features and Advantages:

1. Surface treatment: shot blasting drying anti-corrosion varnish.

2. High quality pump station makes scissor lifting platform rise and fall very stable.

3Anti-pinch scissors design; Anti-scissor structure to prevent accidental clipping of other items.

4. Removable lifting eye to help lifting and mounting table.

5. The heavy-duty oil cylinder is equipped with an explosion-proof valve, which can effectively prevent the lifting platform from falling quickly when the oil pipe bursts.

6. The hydraulic system is equipped with a safety valve to prevent overload operation.

7. Aluminum safety sensor is installed under the platform to prevent being clamped when falling.

8.Comply with ANSI/ASME standards and European standards EN 1757-2.

9. Safety clearance between scissors to prevent damage during operation.

10. Simple structure, easy to operate and maintain.

11. Stop at a predetermined, accurate anchor point.

Safety measures:

1. Explosion-proof valve: protect hydraulic pipeline, prevent hydraulic pipeline rupture.

2. Overflow valve: it can prevent high pressure when the machine moves up. Adjust pressure.

3. Optional emergency lowering valve: in case of emergency or power failure, it can be lowered.

4. Overload protection locking device: when dangerous overload occurs.

5. Anti-falling device: prevent the platform from falling.



Product Parameters

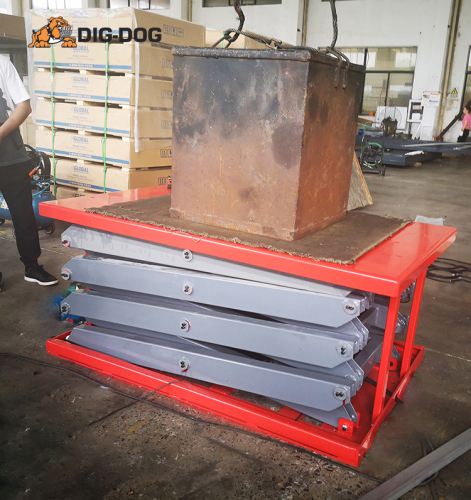

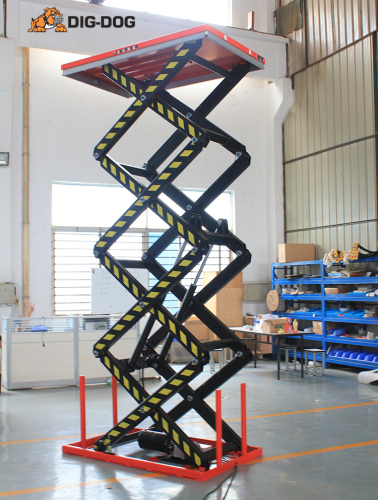

Product photos

FAQ

Q: Are you a manufacturer?
A: DIG-DOG is a family brand of BONOVO group, mainly focusing on small earth moving machines and amphibious excavators. We started our factory in 2006, but our industry experience dates back to the 1980s.

 Q: Why choose BONOVO over any other company?
 A: We manufacture our products locally. Our customer service is exceptional and personalized for every customer. Every BONOVO product is armed and durable with a 12-month warranty. We use high quality materials & parts sourced from the very best in China. Our design team works closely with customers for any customized orders.

 Q: Which payment terms do you accept?
 A: We can work on T/T bank transfer and 100% irrevocable L/C, we also accept trade assurance orders paid by Alibaba using Credit Card, PayPal, Western Union or Escrow, which is now safe and fast for both. Please contact our customer representatives directly for a specific term.

 Q: What logistics way for product delivery?
 A: 1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.
 2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.
3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx.

 Q: What are your warranty terms?
 A: We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.

 Q: What is your lead time?
 A: We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-3 weeks. Contact our sales so you can have an accurate lead time based on actual situations.
