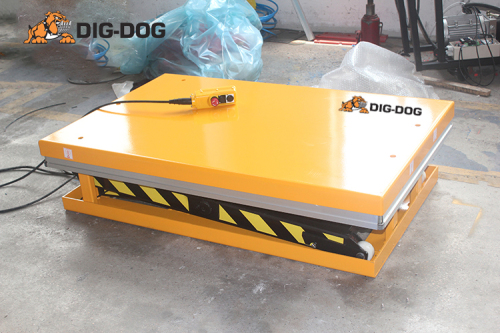

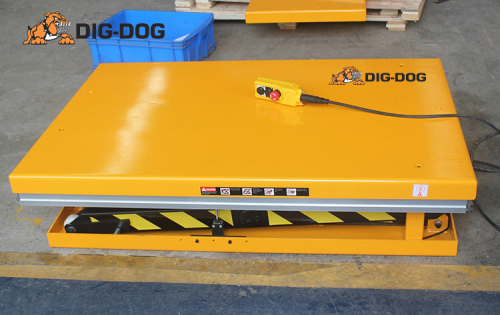

Bonovo Dig-Dog Stationary Scissor Lift with High strength alloy steel, worktable can be equipped with rollers. Convenient to lift board, reduce manual labor intensity.
Specially designed for lifting and conveying materials for factories and users, it adopts hydraulic lifting and equipped with manual pushing drum conveying line. You can design and customize more suitable products according to your needs.

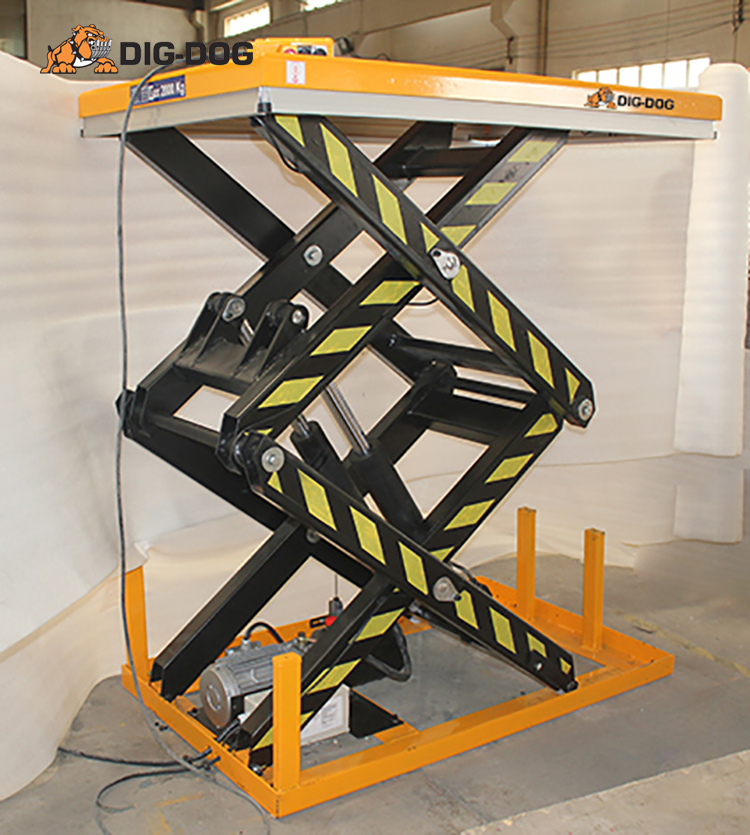

Dig-Dog SL Series Scissors Lifting platform is a high quality electronic hydraulic scissors lifting platform with a bearing capacity from 400kg to 2000kg and a lifting height of 5m. We also accept custom platform sizes and elevations. It can be mounted on the ground.
Features and Advantages:
1. Surface treatment: shot blasting drying anti-corrosion varnish.
2. High quality pump station makes scissor lifting platform rise and fall very stable.
3. Anti-pinch scissors design; Anti-scissor structure to prevent accidental clipping of other items.
4. Removable lifting eye to help lifting and mounting table.
5. The heavy-duty oil cylinder is equipped with an explosion-proof valve, which can effectively prevent the lifting platform from falling quickly when the oil pipe bursts.
6. The hydraulic system is equipped with a safety valve to prevent overload operation.
7. Aluminum safety sensor is installed under the platform to prevent being clamped when falling.
8.Comply with ANSI/ASME standards and European standards EN 1757-2.
9. Safety clearance between scissors to prevent damage during operation.
10. Simple structure, easy to operate and maintain.
11. Stop at a predetermined, accurate anchor point.
Safety measures:
1. Explosion-proof valve: protect hydraulic pipeline, prevent hydraulic pipeline rupture.
2. Overflow valve: it can prevent high pressure when the machine moves up. Adjust pressure.
3. Optional emergency lowering valve: in case of emergency or power failure, it can be lowered.
4. Overload protection locking device: when dangerous overload occurs.
5. Anti-falling device: prevent the platform from falling.
